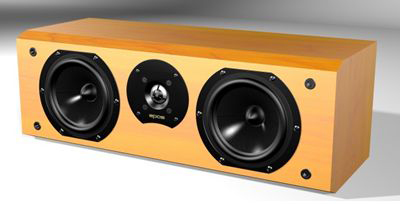

ELS 3C Center Channel

Designed to complement the ELS 3 mini monitor speakers, this new center channel will propel Epos into the home cinema market..

The Epos ELS 3C center channel utilizes the same drive units as the ELS 3 and is therefore ideally matched for use in a home cinema application.

Featuring a 25mm metal dome tweeter with neodymium magnet, together with two 5 ½" woofers, this center channel uses a new die cast aluminium chassis with a cone and surround similar to that being used in the M5 woofer. The Epos logo is embossed on the tweeter faceplate

In designing this center channel, the have introduced an unusual and acoustically advanced crossover which reduces the colouration when two mid/bass units are in close proximity to each other.

Epos ELS Tweeter
The new Epos Swift tweeter uses a 25mm diameter, 40 micron thick, aluminium alloy diaphragm, terminated by a Polyamide suspension. This combination reduces colouration and enables the driver to handle high power without distress. A vented voice coil and magnetic liquid Ferro fluid cooling system improves its power handling ability and helps to smooth its frequency response. Rear cavity loading and a high efficiency Neodymium magnet system focus its transient response and eliminate temporal smearing, giving the Swift impeccable pace, rhythm and timing.

Epos ELS Midrange
The Lightning ELS 130mm midbass driver uses a robust 130mm diameter diecast aluminium chassis, similar to the larger 150mm driver and M130 midbass driver. The cone piston is made from an injection moulded polymer. The rigid chassis provides exceptional detail resolution transient response while the cones unique tapered profile gives improved performance over its bandwidth with the Swift tweeter... The driver will handle high levels cleanly without producing colouration or distortion. The cone piston is terminated with a specially designed positive roll front suspension. A ventilated woven spider rear suspension has been optimized to suit the desired frequency response characteristics of the driver.

Specifications

Power Handling

100 Watts

Frequency Response

50Hz - 20kHz

Impedance

8 ohms Nominal

Sensitivity

87dB/1 watt/1 meter

Amplifier Compatibility
25 - 100 Watt
Biwire Terminals
Yes
Configuration
2 Way Center Channel

Driver Bass

2 x 130mm

Tweeter

25mm aluminum dome

Crossover

6dB/octave on tweeter

Cabinet

24mm MDF

Dimensions

510 x 174 x 210

Weight

8.8 kg

Connection

Gold plated screw terminals with bi-wiring links

Finish

Vinyl wrap Light Cherry
