Soundscape Product Information


N O V A by Earthquake Sound

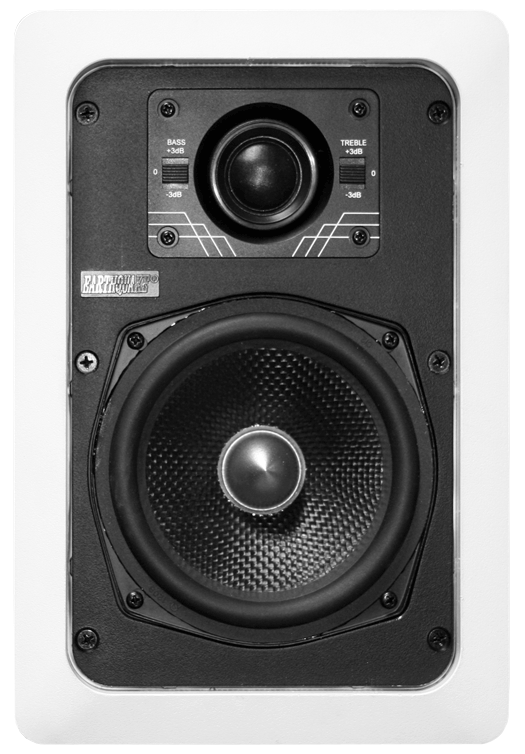

Image-5

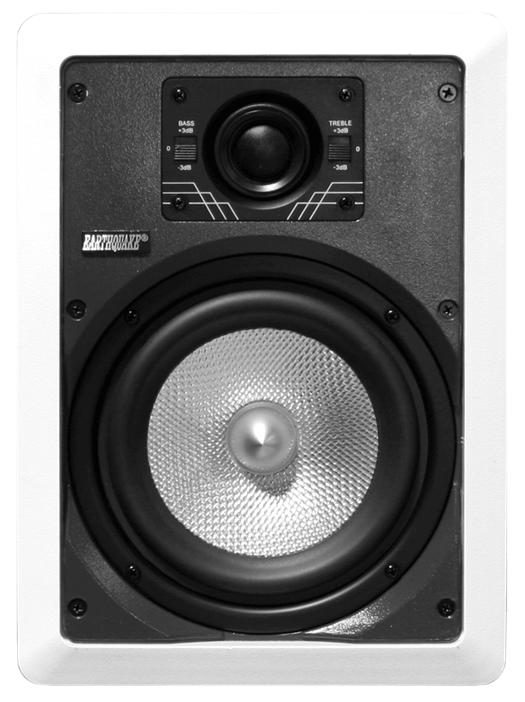

Image-6

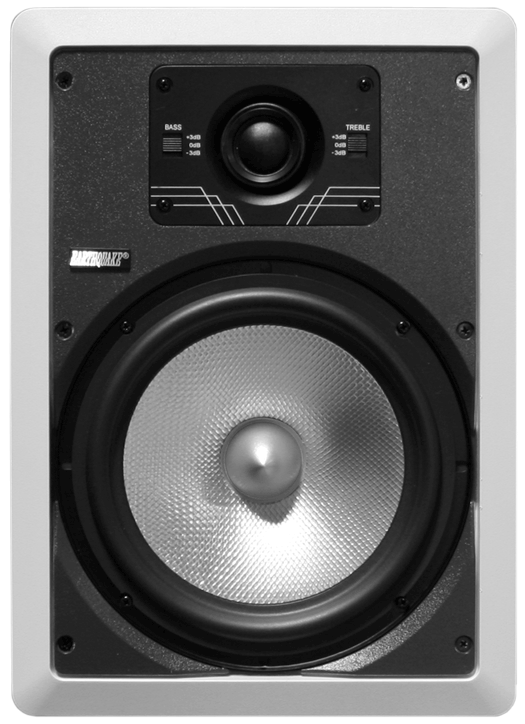

Image-8

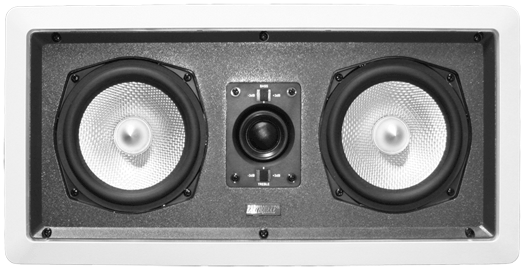

Image-C25

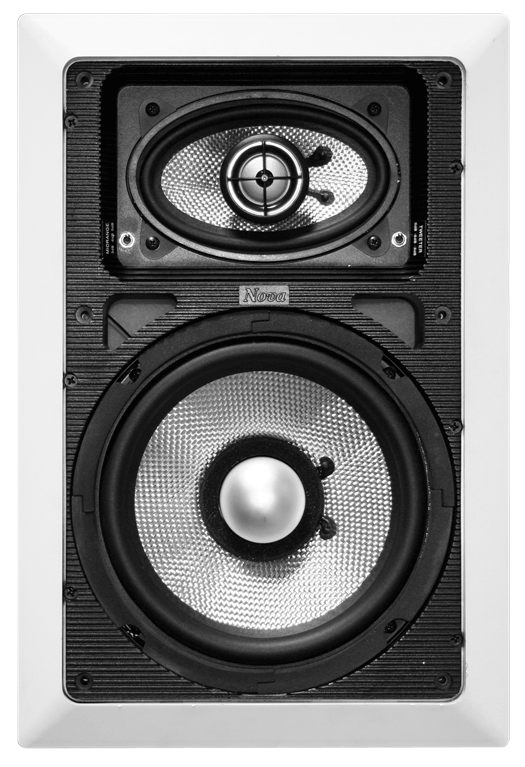

Image-846
Soundscape Price:
$223.38/Pair
Soundscape Price:
$279.98/Pair
Soundscape Price:
$319/Pair*
Soundscape Price:
$239.98/each*
Soundscape Price:
$1,000/Pair*
  • Frequency response 68Hz-20kHz

  • Impedance compatible with 8 Ohm output

  • Recommended power 5-75 Watts

  • Drivers 5.25" woofer, 1" voice coil. 1" Pivoting Dome tweeter, Neodymium magnet

  • Cutout dimensions 9 3/4" x 6 1/4"

  • Filter Network 2-Way Hp/LP 2.5kHz

  • Frequency response 68Hz-20kHz

  • Impedance compatible with 8 Ohm output

  • Recommended power 15-100 Watts

  • Drivers 6.5" woofer, 1" voice coil. 1" Pivoting Dome tweeter, Neodymium magnet

  • Cutout dimensions 10 3/4" x 7 1/4"

  • Filter Network 2-Way Hp/LP 2.5kHz

  • Frequency response 40Hz-20kHz

  • Impedance compatible with 8 Ohm output

  • Recommended power 50-125 Watts

  • Drivers 8" woofer, 1" Pivoting Dome tweeter, Neodymium magnet

  • Cutout dimensions 12 3/4" x 8 1/4"

  • Filter Network 2-Way Hp/LP 2.5kHz

  • Frequency response 46Hz-21kHz

  • Impedance compatible with 8 Ohm output

  • Recommended power 20-150 Watts

  • Two 5 1/4" 1" Pivoting Dome tweeter, Neodymium magnet

  • Cutout dimensions 16" x 8 3/4"

  • Filter Network 2HP 18dB/Oct, 4.5&1kHz

  • Frequency response 36Hz-21kHz

  • Impedance compatible with 8 Ohm output

  • Recommended power 20-150 Watts

  • Drivers 8" woofer, 1.5" voice coil, 3" midrange 1" Pivoting Dome tweeter, Neodymium magnet

  • Cutout dimensions 11 3/4" x 9 1/4"

  • Filter Network 2HP

The corrective ON-AXIS positioning system allows the user to position / point the tweeter where it is needed for optimum surround images. - 4”x6” midrange for wider vocal dispersion.

The Image line of in-wall and ceiling speaker systems is the recipient of numerous design and engineering awards since its conception, including the prestigious "1998 CEMA Design and Engineering Excellence Award" and the "2000 Design and Engineering Showcase Award:, Just to name a few.

Image speaker systems deliver an unmatched performance, that's no accident. It is the result of integrating technology's "best" into the design: Platinum coated phase plug for extended mid band. Overdrive, oversized high temperature aluminum voice coil (1.5"). "Clip detect" protection circuitry. In-door/out-door capability, and much more.

*Includes domestic Freight on orders over $200

CM500
CM600
CM800
Soundscape Price: $ 187.95
Soundscape Price: $ 215.95/pair
Soundscape Price: $ 279.95/pair*
  • Frequency response 68Hz-20kHZ

  • Impedance compatible with 8 Ohm output

  • Recommended power 5-75 Watts

  • Drivers 5.25" woofer, 1" voice coil. 0.5" mylar tweeter, Neodymium magnet

  • Diameter 6 1/2"

  • Filter Network 2-Way Hp/LP 2.5kHz

  • Frequency response 52Hz-21k

  • Impedance compatible with 8 Ohm output

  • Recommended power 15-125 Watts

  • Drivers 6.5" woofer, 1" voice coil. 0.75" titanium tweeter, Neodymium magnet

  • Diameter 8"

  • Filter Network 2-Way Hp/LP 2.5kHz

  • Frequency response 36Hz-21kHz

  • Impedance compatible with 8 Ohm output

  • Recommended power 20-150 Watts Drivers 8" woofer, 1" voice coil. 1" titanium tweeter, Neodymium magnet

  • Diameter 9 1/2"

  • Filter Network 2-Way Hp/LP 3kHz

Image CM ceiling systems offer high-end theater sound in an affordable and transparent package. CM speakers are styled to blend into any decor with paintable grilles and trims, installation is made easy with the patented turn-N-Lock mechanism. Pivoting dome tweeters add wider dispersion and make them great for rear-channel applications or background fill. In rear channel or remote locations these ceiling speakers perform superbly and deliver great bass extension and high power handling.

Additional Features 3/4" neodymium magnet dome tweeter with "On-Axis" - 180 degree positioning for better staging and imaging Long excursion bumped back plate and thick gauss magnet. Easy install "Turn-N-Lock" mechanism. Easy connect spring loaded binding posts. Poly switch for tweeter protection Elaborate filter network: - High pass 12dB/Oct. @ 2kHz - Low pass 12dB/Oct. @ 2kHz

*Includes domestic Freight on orders over $200
